Endpoint Groups

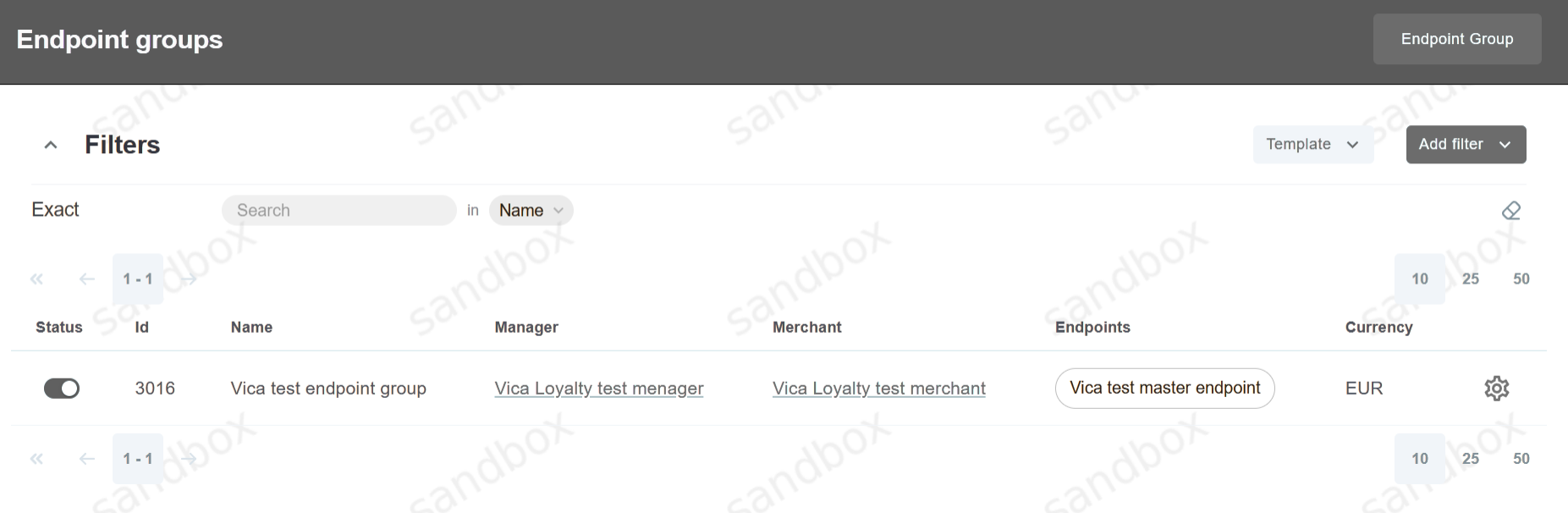

Endpoint group is an entity that combines several Endpoints and Master Endpoints in different currencies. The Endpoint Group simplifies the integration of a Connecting Party business to ConnPay Payment Gateway when working with various currencies. This screen allows to view configured Endpoint Groups.

pic106 merchant faq

Here is shown the structure and logic of Endpoint Group:

title Options for multi-currency processing integration
package "Integration to Endpoint Group" {
  class "layoutHelper1" #ffe6cc;line:black;line.dotted
  class "Project\n currency A" #dae8fc;line:black;line.dotted
  class "Project\n currency B" #dae8fc;line:black;line.dotted
  class "Endpoint\n currency A" #ffe6cc;line:black;line.dotted
  class "Endpoint\n currency B" #ffe6cc;line:black;line.dotted
  class "Endpoint\nGroup" #ffe6cc;line:black;line.dotted
}
package "Integration to multiple Endpoints" {
class "layoutHelper2\n" #ffe6cc;line:black;line.dotted
  class "Project\n currency C" #dae8fc;line:black;line.dotted
  class "Project\n currency D" #dae8fc;line:black;line.dotted
  class "Endpoint\n currency C" #ffe6cc;line:black;line.dotted
  class "Endpoint\n currency D" #ffe6cc;line:black;line.dotted
}
class "layoutHelper3" #ffe6cc;line:black;line.dotted
class "Connecting Party\n (Merchant)" #e1d5e7;line:black;line.dotted

"Connecting Party\n (Merchant)" -left-> "Endpoint\nGroup"
"Connecting Party\n (Merchant)" -down-> "layoutHelper3"
"Connecting Party\n (Merchant)" -down-> "Endpoint\n currency C"
"Connecting Party\n (Merchant)" -down-> "Endpoint\n currency D"

"Endpoint\nGroup" -down- "Endpoint\n currency A"
"Endpoint\nGroup" -down- "Endpoint\n currency B"
"Endpoint\n currency C" -down- "Project\n currency C"
"Endpoint\n currency D" -down- "Project\n currency D"
"Endpoint\n currency A" -down- "Project\n currency A"
"Endpoint\n currency B" -down- "Project\n currency B"
"Connecting Party\n (Merchant)" -left[hidden]- "layoutHelper1"
"Connecting Party\n (Merchant)" -right[hidden]- "layoutHelper2\n"
"layoutHelper1" -[hidden]- "Endpoint\n currency A"
"layoutHelper1" -[hidden]- "Endpoint\n currency B"
"layoutHelper2\n" -[hidden]- "Endpoint\n currency C"
"layoutHelper2\n" -[hidden]- "Endpoint\n currency D"
